Paper Cup Raw Material Guide: GSM, Cost Yield & Avoiding Hidden Traps

Entering the paper cup manufacturing industry or scaling up your global packaging procurement often feels like navigating a minefield. Many factory owners and procurement managers operate under the dangerous misconception that buying paper cup raw material is as simple as ordering standard printer paper. The reality is far more unforgiving. A slight miscalculation in material specifications—whether it is an incorrect GSM, an incompatible barrier coating, or poorly managed moisture content—can lead to disastrous consequences. These range from relentless machine jamming on the production line to devastating bottom-leakage complaints from major coffee chains, ultimately causing your profit margins to plummet due to high scrap rates.

Whether you are dealing with multi-ton jumbo rolls or pre-die-cut paper cup fans, selecting the right paper cup material is a high-stakes engineering and financial decision. This comprehensive guide is designed for B2B professionals, factory directors, and global packaging importers. We will bypass the superficial marketing jargon and dive deep into the industrial realities of paper cup making raw material.

To respect your time and provide immediate value, this guide is structured around four core B2B procurement pillars:

• 1. The Underlying Material Science: Evaluating base pulps, moisture tolerances, and barrier coatings.
• 2. The Engineering Matrix: The golden standard for matching paper GSM to cup volumetric capacity.
• 3. Supply Chain Formats: Quantitative thresholds for choosing between Jumbo Rolls and Cup Fans.
• 4. Commercial Cost-Yield & Assurance: Calculating true blanks per ton and eliminating post-sale friction.

Decoding Paper Cup Raw Material: Beyond Just "Paper"

To master procurement, we must first break the cognitive illusion that a paper cup is simply made of "paper." In modern packaging engineering, a paper cup is a precision-engineered composite product. It relies on a strict binary structure: the structural base paper and the barrier coating. You cannot discuss one without deeply evaluating the other.

Think of it as the anatomy of a building. The base paper pulp acts as the steel framework, providing the necessary stiffness, shape retention, and structural integrity under stress. The barrier coating functions as the concrete and waterproofing seal, ensuring the liquid stays inside and the seams hold tight under high-temperature industrial sealing. An industry-standard polyethylene (PE) coated cup typically consists of 95% base paper and 5% polymer coating by weight. Understanding this 95/5 ratio is the first step in diagnosing why a seemingly perfect paper cup might suddenly collapse when filled with boiling water. It is never just a "paper" issue; it is a structural and chemical composite challenge.

The Foundation: Evaluating Base Pulp Materials for Cup Manufacturing

The "skeleton" of your cup determines how it feels in the consumer's hand and how smoothly it runs through your forming machines at speeds exceeding 100 cups per minute. Selecting the right base pulp requires balancing peak physical performance with environmental variables and market positioning.

Virgin Wood Pulp and Structural Integrity

In the realm of food-grade packaging, 100% virgin wood pulp remains the undisputed gold standard. But why do top-tier manufacturers refuse to compromise on this? The answer lies in two critical physical metrics: stiffness and tensile strength. Virgin fibers are long, robust, and highly interwoven. When a paper cup fan is curled at the top (the rimming process) or knurled at the bottom, virgin pulp fibers bend and stretch without fracturing.

Furthermore, stringent international food safety regulations, such as the FDA 21 CFR 176.170, strictly prohibit the use of secondary recycled paper for the inner layer that comes into direct contact with aqueous and fatty foods. Recycled paper contains unpredictable contaminants, short fibers, and chemical residues from previous inks. Imagine a consumer holding a large 16oz hot latte; if the structural integrity of the cup relies on weak, recycled fibers, the heat will quickly compromise the cup's stiffness. The cup body will soften, deform, and potentially cause a severe burn hazard. Investing in premium virgin wood pulp ensures maximum stiffness, zero odor, and flawless machine runnability.

Alternative Eco-Friendly Pulps and Market Trends

As global sustainability mandates tighten, alternative pulps like bamboo pulp and sugarcane bagasse are gaining significant traction. However, B2B buyers must look beyond the "eco-friendly" label and understand the operational reality of these materials on the factory floor.

Bamboo pulp is highly renewable, but its fibers are naturally shorter and harder than wood pulp. While this provides excellent natural stiffness, it introduces a hidden trap for high-speed paper cup forming machines: excessive paper dust. Processing bamboo pulp requires extremely precise die-cutting molds; otherwise, it generates dust that can clog machine sensors and heating manifolds, increasing maintenance downtime. Bagasse is softer and often used for molded pulp lids, but requires specific chemical sizing to achieve the water resistance needed for cup bodies. Commercially, switching to bamboo material can increase your single-cup cost by 10% to 15%, a premium that is usually only absorbed by high-end, eco-conscious independent coffee brands.

The Critical Role of Moisture Content in Base Paper

Here is an industry blind spot that separates amateur buyers from veteran factory engineers: the physical mutation of raw materials during storage. Before we even discuss coatings, we must address the base paper's Moisture Content, which must be strictly maintained between 5% and 7%.

If your warehouse lacks climate control and the moisture content drops below 5% in winter, the paper fibers become brittle. When the machine attempts the top curling (rimming) process, the paper will snap and tear, resulting in a jagged, unsellable rim that cannot hold a plastic lid secure. Conversely, if the environment is too humid and moisture exceeds 7%, the paper loses its stiffness and becomes soggy. Worse, during the high-temperature bottom sealing process, the trapped moisture turns to steam beneath the barrier coating, causing blistering, weak seals, and inevitable leaks. Even if you purchase the highest-grade virgin wood pulp, failing to manage this strict moisture tolerance will render the material useless.

Barrier Coatings: The Science of Waterproofing and Sealing

If the pulp is the skeleton, the barrier coating is the skin. This micro-thin layer is responsible for preventing liquid penetration and acting as the thermal adhesive that seals the cup's side seams and bottom edge. Choosing the wrong coating doesn't just mean a leaky cup; it means your entire production line could fail to bond.

Traditional Polyethylene (PE) Coating Dynamics

The industry workhorse is Polyethylene (PE). The critical decision for any buyer is choosing between Single PE and Double PE coated materials. This is a matter of thermodynamics, not just quality.

A crucial engineering parameter is the PE coating weight, typically ranging from 15g to 20g/m². If a supplier cuts costs by providing a 12g PE coating, you will face "false sealing"—the cup looks sealed but will pop open when filled with hot liquid because there isn't enough melted polymer to form a solid molecular bond. A coating thicker than 20g adds unnecessary weight, drives up your per-ton cost, and accelerates die-cutting knife wear.

Next-Generation Sustainable Coatings: Hard Industrial Truths

The market demands PLA (Polylactic Acid) and Aqueous (water-based) barrier coatings. However, transitioning to these sustainable options requires overcoming harsh manufacturing realities.

PLA is a plant-based, compostable polymer, but it is notoriously brittle and highly sensitive to temperature. If you run PLA-coated paper, your side seams require either highly precise, digitally controlled Hot Air Systems or Ultrasonic Sealing technology to achieve a clean bond without scorching the material. Furthermore, PLA raw material has a strict shelf life. In a standard warehouse without continuous air conditioning and humidity control, its optimal machine runnability window is often only 6 months. Beyond this, it begins to degrade, crack, and fail on the production line.

Aqueous coatings present a different thermodynamic challenge. While they render the cup fully repulpable alongside standard paper, their heat-activation threshold differs vastly from PE. Factory directors must often reduce their machine's running speed by 15% to 20% to increase dwell time. More importantly, they must compensate by increasing the heating manifold or bottom heater temperatures by 30°C to 50°C to properly activate the water-based dispersion. Failing to adjust both speed and temperature simultaneously guarantees widespread false sealing and catastrophic leaks.

The Engineering Matrix: Matching GSM to Cup Capacity

Perhaps the most critical aspect of procurement is matching the Grams per Square Meter (GSM) to the volumetric capacity of the cup. Based on the international TAPPI T441 (Cobb Water Absorption) standards and diagnostic data from top-tier machinery manufacturers, we have constructed the following matching matrix.

To understand the commercial gravity of this matrix, consider the standard 8oz hot coffee cup. If a procurement manager insists on using 300gsm paper for an 8oz cup to achieve an ultra-premium feel, the cup will indeed be incredibly rigid. However, the sheer weight of the raw material means the total number of cups yielded per ton of paper drops significantly. Your unit cost skyrockets, and your sales team will consistently lose B2B bids against competitors offering the ergonomically sufficient, cost-optimized 250gsm specification.

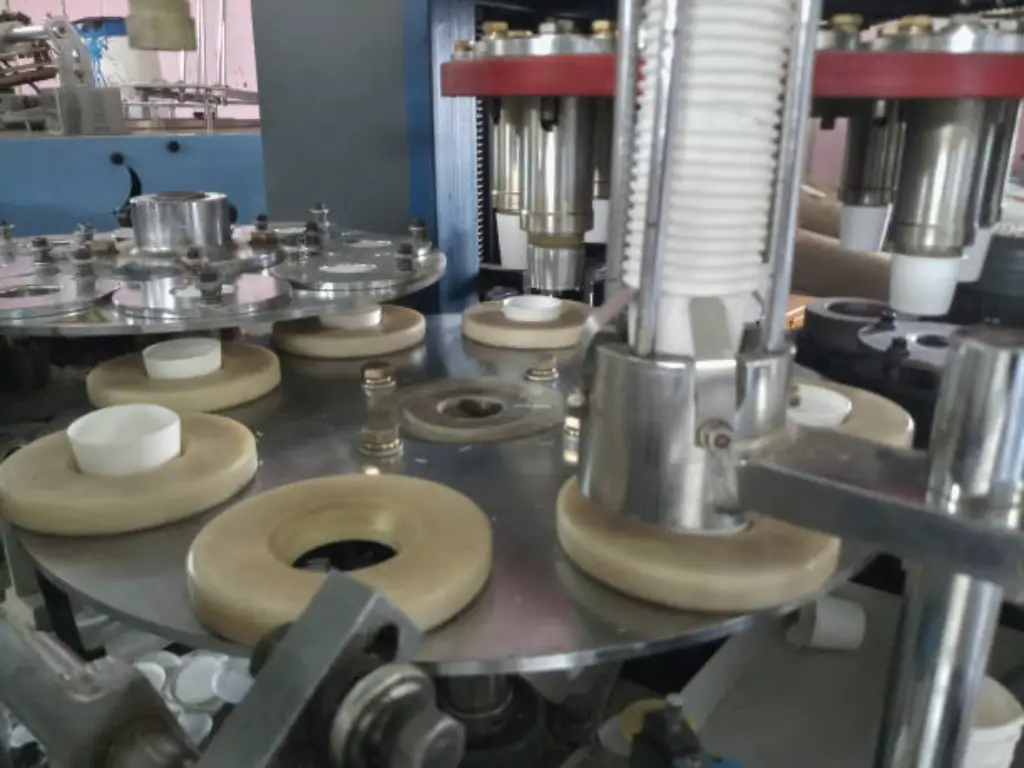

Raw Material Formats: Supply Chain to Machine Compatibility

Once physical properties are finalized, the next hurdle is supply chain formatting: Jumbo Rolls versus Pre-Die-Cut Cup Fans. This decision should not be based on feelings, but on strict production volume thresholds.

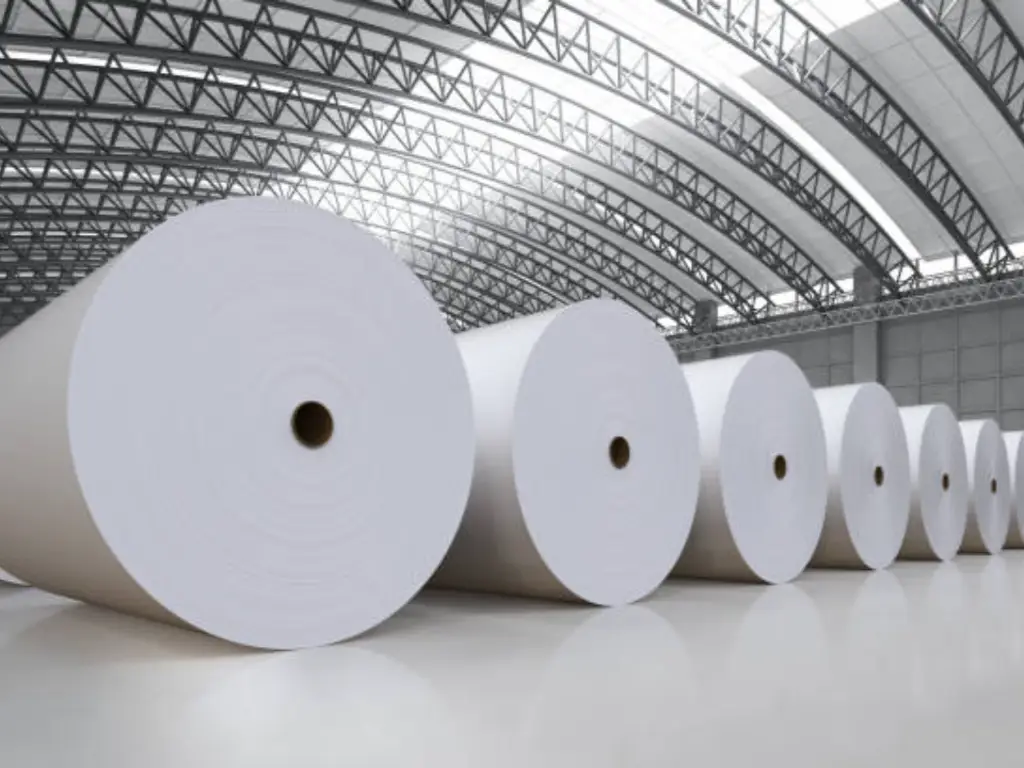

Jumbo Rolls: Procuring Jumbo Rolls (often weighing over a ton each) offers the lowest price per kilogram. However, this format is strictly recommended only if your factory's daily production volume consistently exceeds 1,000,000 cups, and you have the capital expenditure to operate high-speed flexographic printing presses and flatbed die-cutters with automated web waste recovery systems. Without this infrastructure, Jumbo Rolls are a logistical nightmare.

Pre-Die-Cut Cup Fans: If your facility's daily capacity is under 500,000 cups, or if you want to bypass the heavy investments of pre-press equipment, you must source Pre-Die-Cut Cup Fans. The raw material arrives printed, coated, and cut to your exact mold specifications, ready for the forming machine. When sourcing cup fans, the critical metric to audit is the supplier's Nesting Layout efficiency. An optimized die-cutting layout can reduce paper web waste by up to 5%, a direct saving that should be reflected in your final purchase price.

B2B Cost-Yield Calculation: Maximizing Blanks Per Ton

In B2B manufacturing, the ultimate truth is written in the profit margins. Purchasing raw material by weight (tons) while selling the finished product by volume (pieces) creates a complex cost-conversion scenario.

The Mathematics of Paper Yield

To accurately forecast production, you must utilize a yield calculation formula. Assuming you are purchasing 1 metric ton (1000kg) of coated paper in roll form, the calculation must account for the skeletal waste left over after the cup fans are punched out (typically around 15% for an optimized layout).

Yield Formula: (Total Weight in Grams × Usable Percentage) ÷ Weight of a Single Cup Blank

For example, if you are producing an 8oz cup using 250gsm paper, a single die-cut cup blank might weigh approximately 4.5 grams.
(1,000,000 grams × 0.85) = 850,000 grams of usable material.
850,000 grams ÷ 4.5 grams = ∼188,888 cups per ton.

Hidden Costs in Substandard Materials

The pursuit of the lowest price per ton is the most common trap for buyers. Saving $50 on a ton of raw material can introduce catastrophic hidden costs on the factory floor. Substandard materials often suffer from uneven coating thickness and inconsistent GSM across the paper web. This microscopic variance leads to frequent machine jamming. Every time an operator stops the machine to clear a jam, you lose not only raw material but also precious minutes of production time.

To completely eradicate these hidden costs, procurement must shift focus toward suppliers with draconian quality control and raw material traceability. For instance, Yoonpak, a manufacturer with 24 years of experience, eliminates material variance by exclusively sourcing paper from globally recognized mills like SUN PAPER and Stora Enso. By implementing high-frequency QC checks every single hour, they ensure absolute consistency in coating thickness. To seal this closed-loop quality system, Yoonpak prints the production date, time, and a unique serial number on the bottom of every cup. This 100% traceability reduces the client's risk of facing defective batches to absolute zero, a standard that has earned the trust of global titans like Burger King, Tim Hortons, and ILLY. You can discover more about how precision manufacturing can reduce your comprehensive paper cup production costs with Yoonpak's dedicated supply chain solutions.

Regulatory Compliance and Post-Sale Assurance in Food-Grade Packaging

The final barrier to scaling your B2B packaging business globally is regulatory compliance. Operating in Europe, North America, or high-end Middle Eastern markets requires materials that meet rigorous safety and environmental benchmarks. Your raw paper and coatings must clear the U.S. FDA (21 CFR 176.170), the European LFGB, and ideally hold FSC (Forest Stewardship Council) certification. Without these documents, major chains will immediately disqualify you from their bidding processes. Choosing a fully certified factory like Yoonpak—which operates under ISO, BRC, FDA, and LFGB standards—instantly opens global market doors, backed by an annual capacity of 16 billion cups and a flexible MOQ starting at just 100,000 pieces (or 10,000 pieces if freight is covered).

However, the greatest fear for cross-border FMCG buyers is FOMU (Fear Of Missing Out/Messing Up)—specifically, the nightmare of supply chain disruption and post-sale claims. Traditional suppliers demand complex, drawn-out return shipping for defective batches, paralyzing your operations and causing inventory stockouts.

Yoonpak shatters this friction by redefining post-sale assurance. Instead of dragging out investigations, Yoonpak offers a rapid-response policy: if leakage occurs, no return is required. Upon receiving photographic or video evidence, Yoonpak will initiate the claim process within 48 hours. By offering immediate account credit refunds or expedited remake solutions, they completely eliminate the financial risks and time-friction of cross-border procurement. Transition to a zero-risk supply chain today by requesting free standard samples, dispatched within 48 hours, and leverage their 1-month free warehousing to optimize your global logistics.
